Example of a graph that is connected, has articulation point, needs 4 colors, and does not have a 4-clique

Question

Give an example of a graph that has all of the following properties.  (Note that you need to give a single graph as the answer.)
(i)    It is connected
(ii)    It has one articulation point.
(iii)    The graph needs at least 4 colors for a valid vertex coloring
(iv)    The graph does not have a 4-clique (that is, a clique of 4 vertices) as a subgraph.

Answer 1

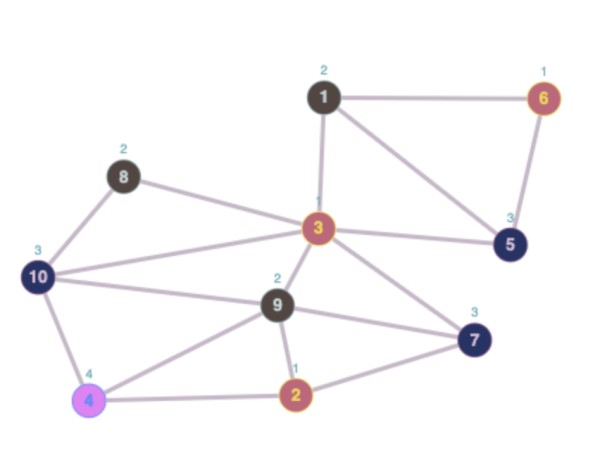

The following graph satisfies all the four conditions:

The connected graph has an articulation point "3". Vertex coloring "4" as shown in image and has maximum clique of "3".
